Description

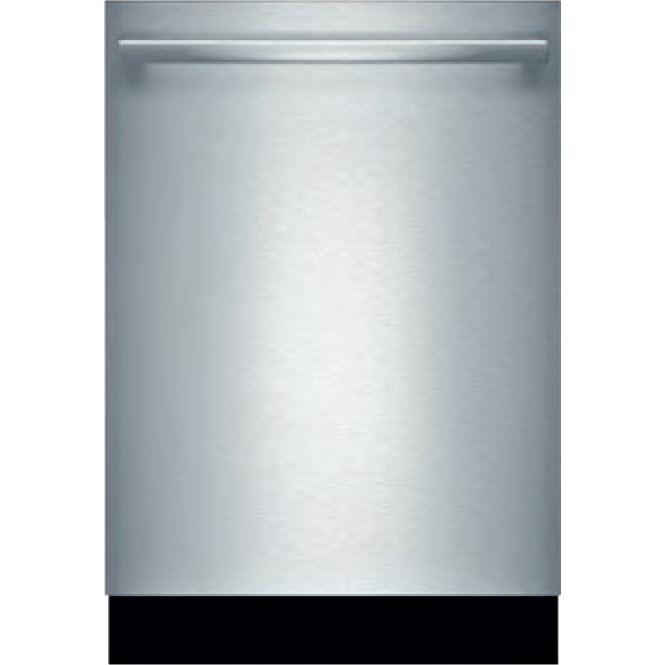

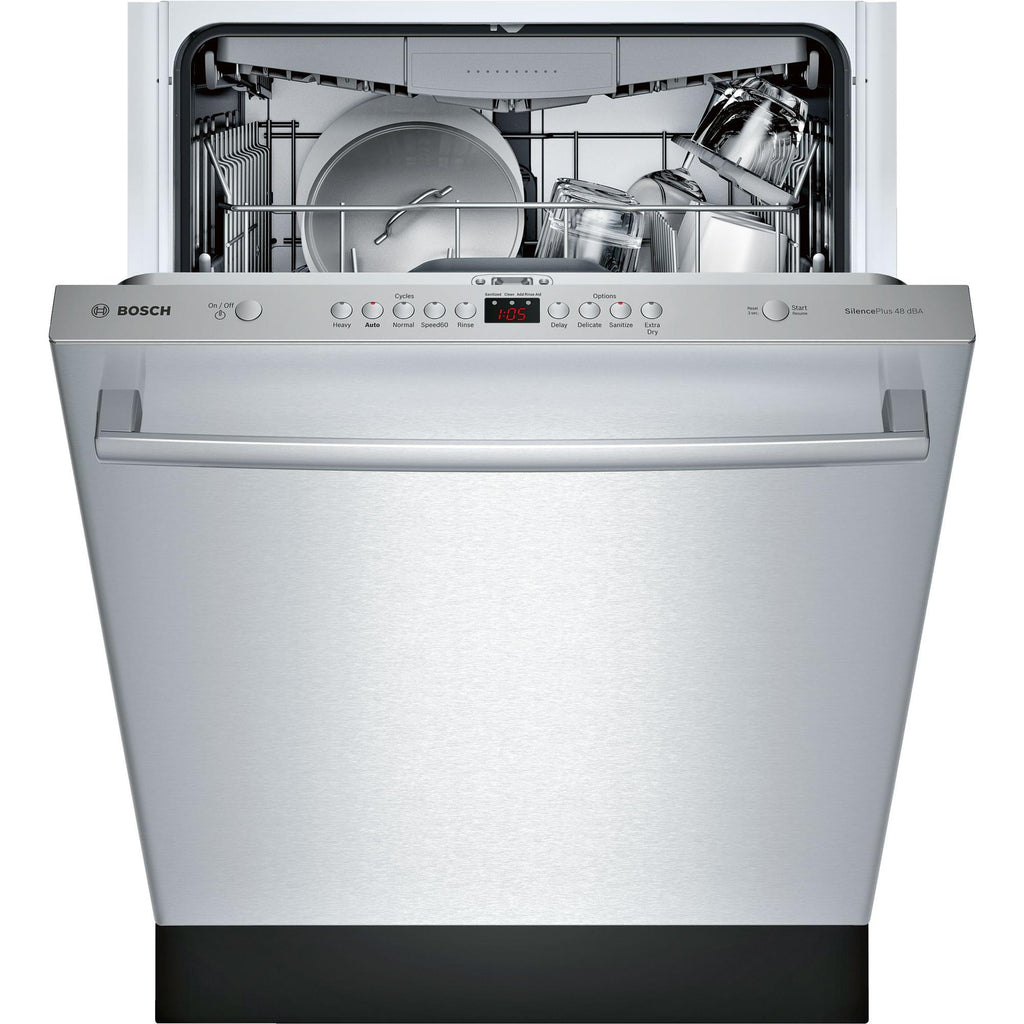

Bosch Ascenta® Series 24" top controls dishwasher with a bar handle. This dishwasher features InfoLight® that shines on the floor so you know the dishwasher's running, a stainless steel tall tub with polypropylene bottom that delivers durability and a 24/7 Overflow Protection System® that helps prevent water leaks.
Features
RACKMATIC®
The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
ECOSILENCE™ MOTOR SYSTEM
Quiet operation is just as important as sparkling clean dishes. That means never having to wait until going to bed to run the dishwasher. Bosch's dishwashers with EcoSilence™ motor system deliver high-performance cleaning with low noise emission. Two small brushless motors offer quieter operation than a single large motor, and are held in place by rubber suspenders to minimize vibrations. So your home is as quiet as it is clean.
INFOLIGHT®
Bosch dishwashers are so quiet, you may forget they’re on. InfoLight® projects a red light onto the floor during the wash cycle that turns off when dishes are ready.

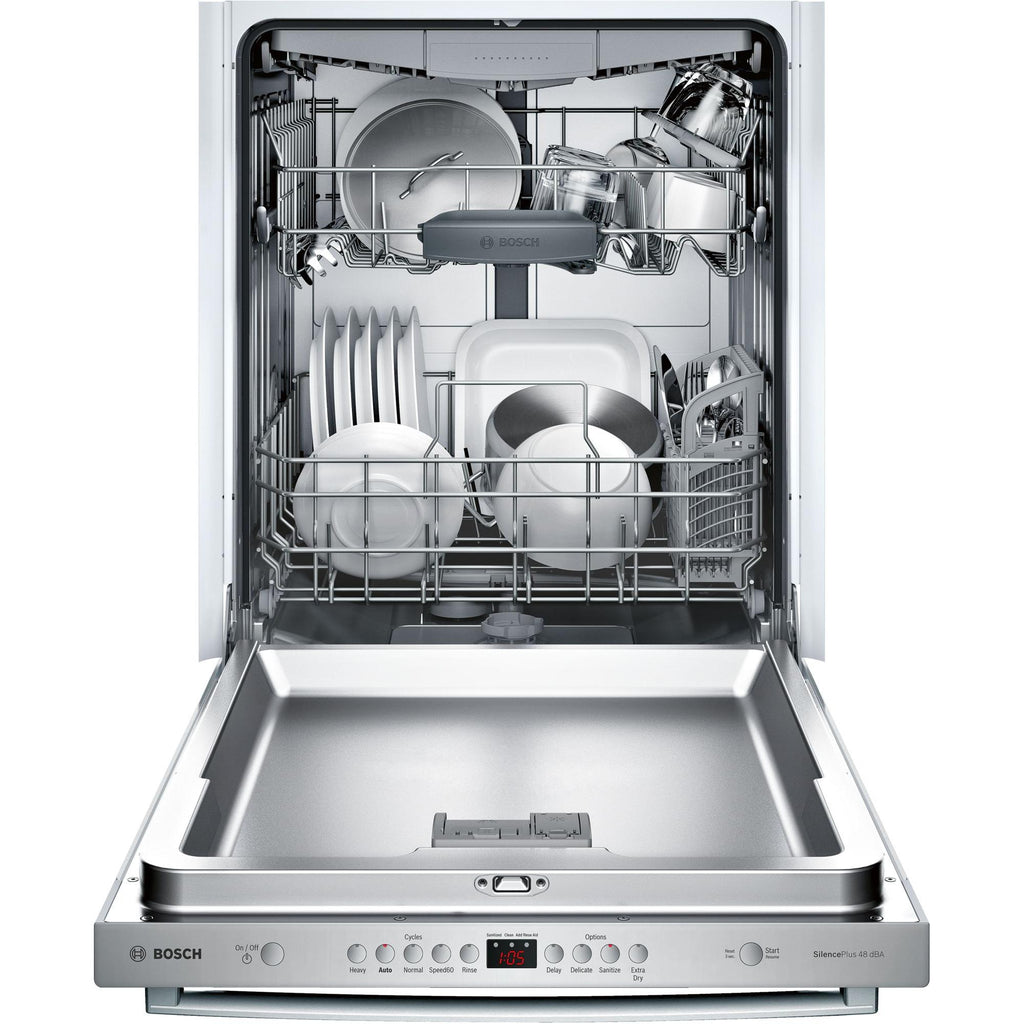

3RD RACK
The 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks
Specifications
General
Series Name
Ascenta® 100 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
15
Tub Material
Stainless Steel/Plastic
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• 1-Hour wash
• Auto
• Power Scrub Plus
• Regular
• Rinse and Hold
• Auto
• Power Scrub Plus
• Regular
• Rinse and Hold
Options
• Half load option for small loads
• Chrystal Protect
• Extra dry option for better drying results
• Sanitize option eliminates bacteria and enhances drying results
• Chrystal Protect
• Extra dry option for better drying results
• Sanitize option eliminates bacteria and enhances drying results
Features
Technologies
• RackMatic® on upper rack - 3 height adjustments
• InfoLight® beams on floor to indicate dishwasher is running
• 24/7 Overflow Protection System®
• InfoLight® beams on floor to indicate dishwasher is running
• 24/7 Overflow Protection System®
Delay Start Information
24 h
Delay Start
Yes
3rd Rack System
Yes
Control Lock
No
Silverware Basket
Yes
Additional Information
• Stainless steel tall tub with polypropylene
• Standard third rack
• Drying system: Inherent heat
• Concealed heating element
• LED remaining time display
• Long silverware basket can be placed anywhere in the Dishwasher, adding space for other items
• Detergent tray optimizes detergent dissolving
• Load size sensor automates wash temperature
• Self-latching door
• Bar handle
• Standard third rack
• Drying system: Inherent heat
• Concealed heating element
• LED remaining time display
• Long silverware basket can be placed anywhere in the Dishwasher, adding space for other items
• Detergent tray optimizes detergent dissolving
• Load size sensor automates wash temperature
• Self-latching door
• Bar handle
Electrical Information
Information
• Watts: 1,440 W
• Current: 12 A
• Volts (V) 120 V
• Frequency (Hz) 60 Hz
• Current: 12 A
• Volts (V) 120 V
• Frequency (Hz) 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Dishwasher Drain Hose Extension 76 3/4" SGZ1010UC
• Dishwasher Accessory Kit SGZ1052UC
• DoubleFlex Silverware Basket SMZ4000UC
• Edge Protector SMZEP001UC
• Dishwasher Drain Hose Extension 76 3/4" SGZ1010UC
• Dishwasher Accessory Kit SGZ1052UC
• DoubleFlex Silverware Basket SMZ4000UC
• Edge Protector SMZEP001UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
33.86 inch(es) / 86 cm
Depth (Without Handle)
22.56 inch(es) / 57.31 cm
Weight
76.5 lb(s) / 34.7 kg
Additional Dimensions
• Length outlet hose: 230 cm
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
Warranty
Warranty
1-Year warranty on parts and labor
UPC
UPC#
825225955368
