Description

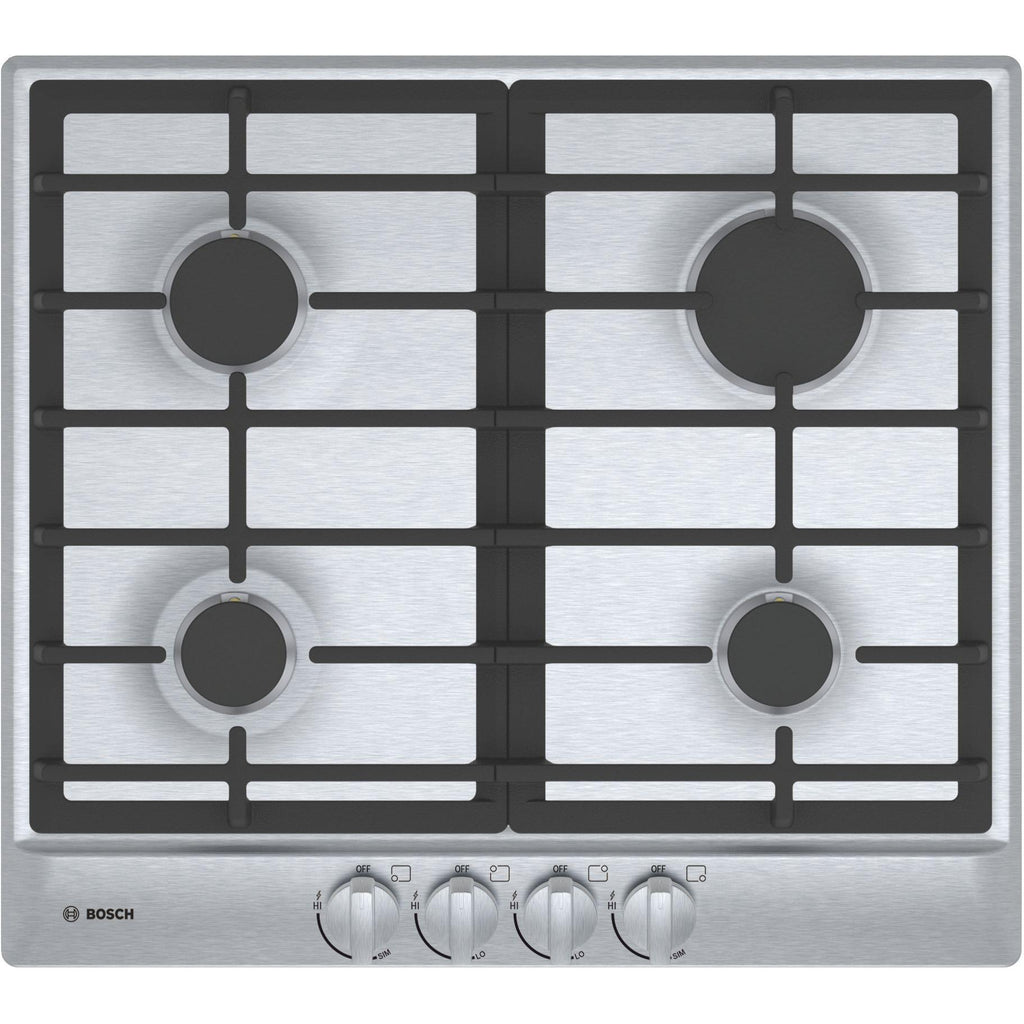

This 24-inch Bosch 500 Series gas cooktop features 4 sealed burners, automatic electronic re-ignition and a LP conversion kit is included.
Features
HEAVY-DUTY METAL KNOBS
Heavy-duty metal knobs for a Premium look and feel.
Specifications
General
Series Name
500 Series
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Front Right: 5,000 BTU
• Back Right: 11,500 BTU
• Front Left: 5,000 BTU
• Back Left: 9,100 BTU
• Back Right: 11,500 BTU
• Front Left: 5,000 BTU
• Back Left: 9,100 BTU
Burners
Sealed
Surface Features
Cast Iron Grates
Features
Additional Information
• 11,500 BTU Burner for Faster Boiling Time
• Heavy-Duty Metal Knobs for a Premium Look and Feel
• Low-Profile Design for an Integrated Appearance
• Centralized Controls for Easy Use and Intuitive Operation of the Cooktop
• Cooktop Design Coordinates with Bosch Ovens and Ventilation
• Sealed Burners Prevent Spills from Entering the Burner Box
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition: In Case Flame Goes Out, the Burner is Automatically Re-Ignited
• Heavy-Duty Metal Knobs for a Premium Look and Feel
• Low-Profile Design for an Integrated Appearance
• Centralized Controls for Easy Use and Intuitive Operation of the Cooktop
• Cooktop Design Coordinates with Bosch Ovens and Ventilation
• Sealed Burners Prevent Spills from Entering the Burner Box
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition: In Case Flame Goes Out, the Burner is Automatically Re-Ignited
Electrical Information
Information
• 360 W
• 120 V
• 60 Hz
• 15 A
• 120 V
• 60 Hz
• 15 A
Certifications and Approvals
Sabbath Mode
No
Accessories
Included
LP Conversion Kit
Dimensions
Class Width
24"
Width
22.91 inch(es) / 58.2 cm
Height
3.07 inch(es) / 7.8 cm
Depth
20.47 inch(es) / 52.0 cm
Weight
31.99 lb(s) / 14.51 kg
Additional Dimensions
Required Cutout Size (HxWxD): 2 3/4" x 20 7/8" x 19 1/4"
Shipping Dimensions
Width
23.74 inch(es) / 60.3 cm
Height
10.78 inch(es) / 27.38 cm
Depth
28.74 inch(es) / 73 cm
Weight
35.01 lb(s) / 15.88 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225916888
