Description

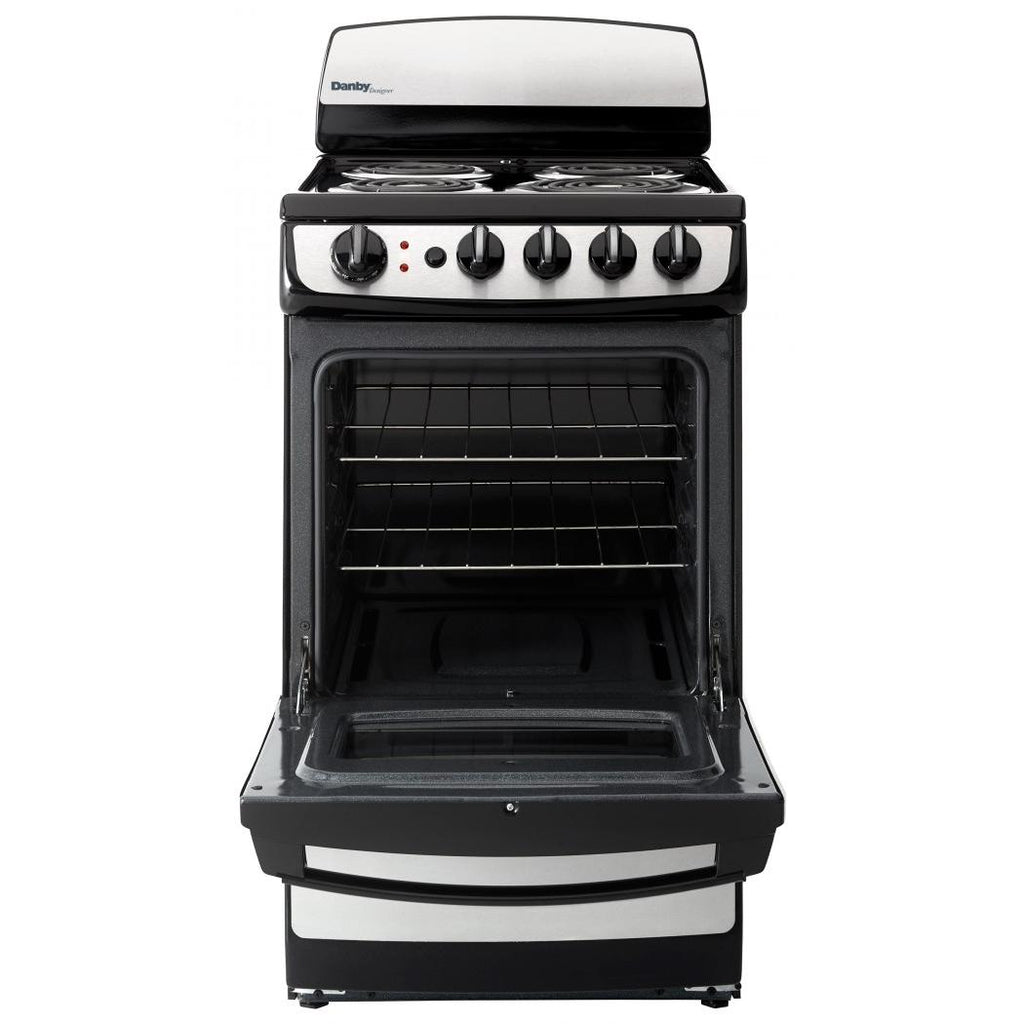

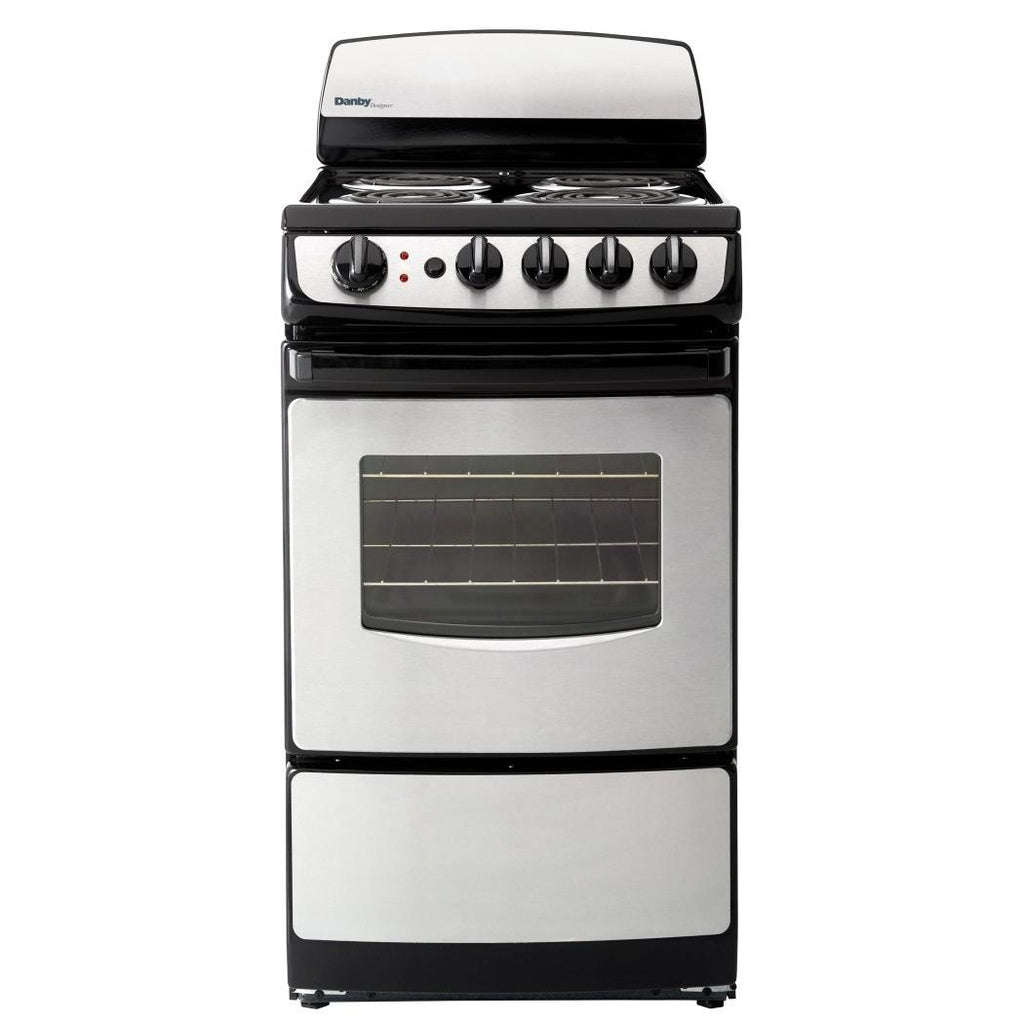

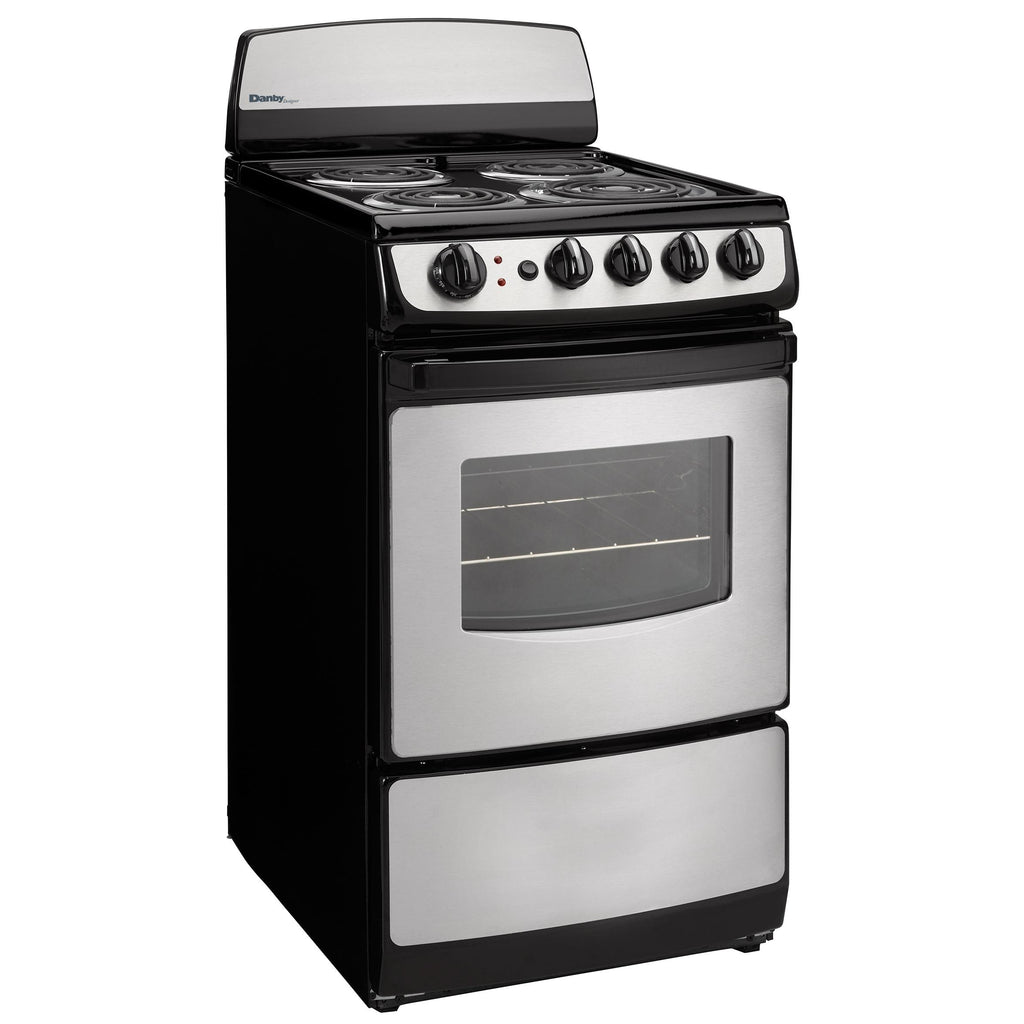

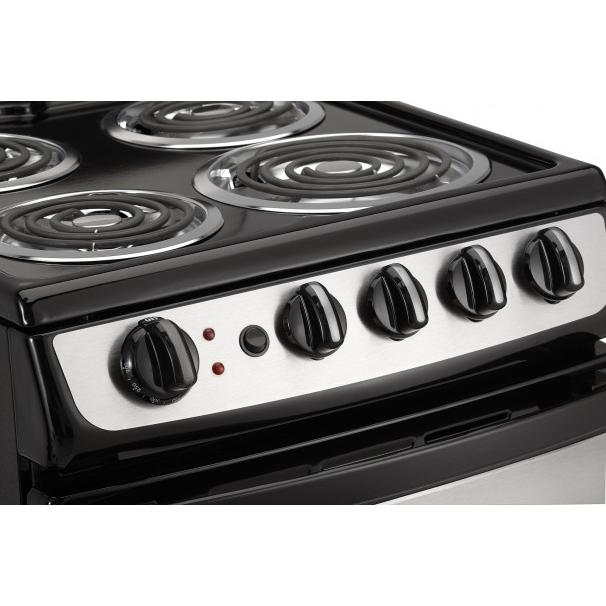

Danby Designer 20" wide compact electric range featuring an easy clean lift-up porcelain cooktop with four removable chrome drip bowls, a powerful broiler with 2,400W of cooking power and a large oven window with interior light for easy viewing.
Specifications
General
Series Name
Danby Designer
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• One 8" coil element (2,100W)
• Three 6" coil element (1,250W)
• Three 6" coil element (1,250W)
Burner/Element Size
• One 8" coil element
• Three 6" coil element
• Three 6" coil element
Elements
Coil
Oven
Capacity (cu. ft.)
2.4
Number of Ovens
Single
Features
Control Lock
No
Convection
No
Oven Light
Yes
Self-Cleaning
No
Additional Information
• Easy clean, lift-up porcelain cooktop with four removable chrome drip bowls
• Powerful waist-high broiler with 2,400W of cooking power
• Front mount push and turn safety knobs
• Oven temperature range of 200°F-500°F
• Hot surface indicator lights let you know when the oven and/or cooktop are on
• Large oven window with interior light for easy viewing
• Two oven racks with four adjustable positions and safety stops for optimal cooking
• Three piece broiler pan included
• Four adjustable legs for a custom fit to the height of your counter
• Requires a 220V power outlet (power cord not included)
• Manual clean range
• Powerful waist-high broiler with 2,400W of cooking power
• Front mount push and turn safety knobs
• Oven temperature range of 200°F-500°F
• Hot surface indicator lights let you know when the oven and/or cooktop are on
• Large oven window with interior light for easy viewing
• Two oven racks with four adjustable positions and safety stops for optimal cooking
• Three piece broiler pan included
• Four adjustable legs for a custom fit to the height of your counter
• Requires a 220V power outlet (power cord not included)
• Manual clean range
Drawer Features
Storage
Yes
Electrical Information
Information
220 volts
Dimensions
Class Width
20"
Width
20 inch(es) / 50.8 cm
Height
40.04 inch(es) / 101.7 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Additional Dimensions
Carton Dimensions: Width: 22 8/16" (57.2 cm); Depth: 28 8/16" (72.4 cm); Height: 50" (127.0 cm)
Shipping Dimensions
Weight
131.84 lb(s) / 59.8 kg
Warranty
Warranty
Limited 1 1/2 years parts and labor
UPC
UPC#
067638006552
