Description

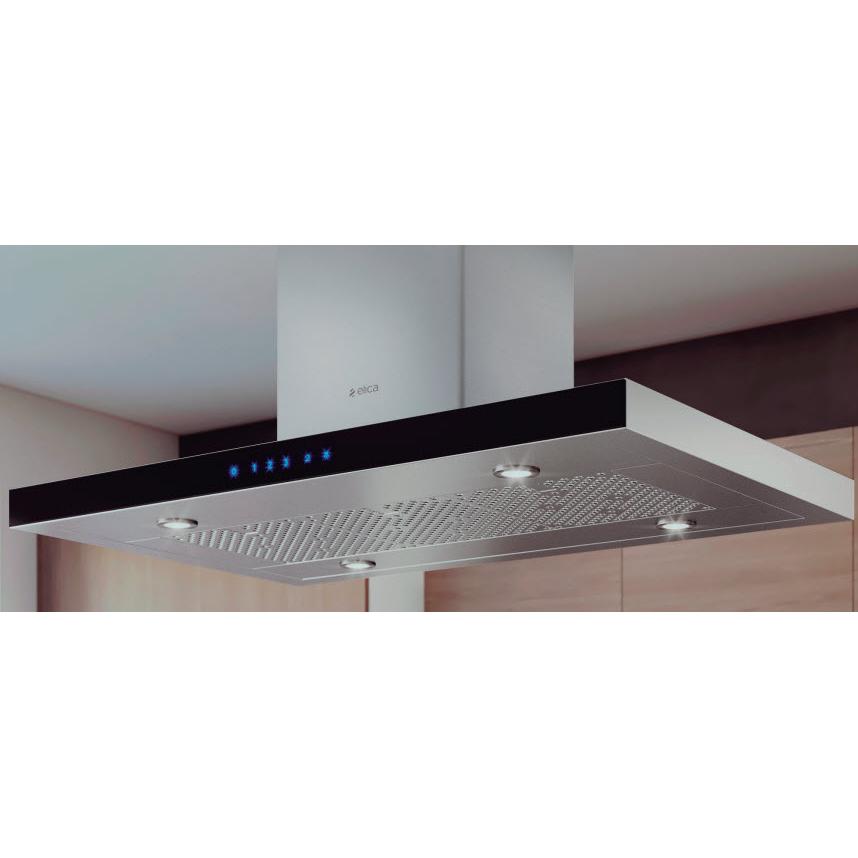

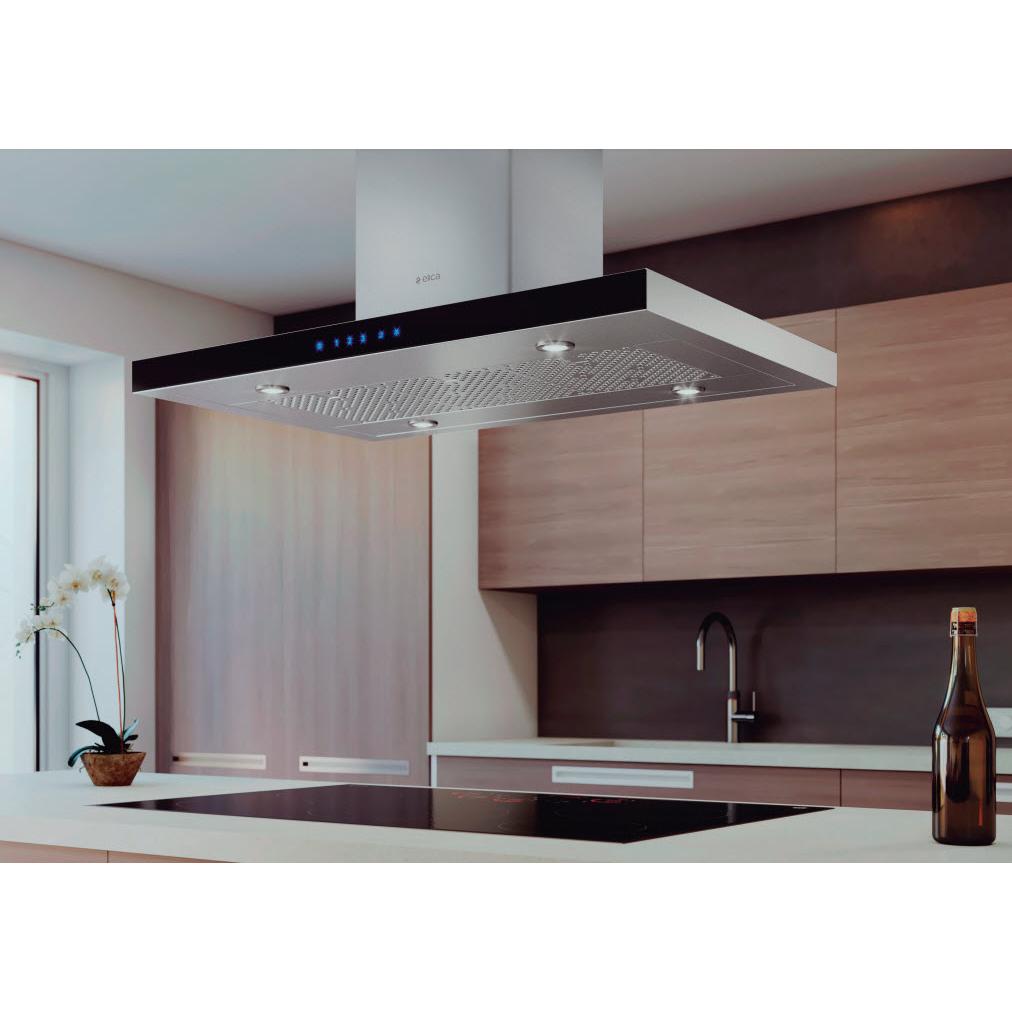

Elica Maggiore Series 36-inch island hood. With a minimalist design but a strong stainless steel construction, Maggiore is in tune with avant-garde appliances where clear and architectural lines take precedence. Maggiore has a powerful 600 CFM blower, dimmable LED, stainless steel microhole filters and high-tech glass touch controls that deliver convenience and safety.
Features
AMBIENT LIGHT
Elica studies on hood lighting leaves no stone unturned. Here we have thought about products not only able to light the cooktop, but the entire kitchen space. And so the hood is transformed: from a kitchen appliance to a true lighting element. Considering the design of Elica hoods, it is not hard to imagine how this option is unique, and represents one extraordinary point of strength for us.
DIM-LIGHT
The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
TOP PERFORMANCE
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's.
HUSH SYSTEM
An exclusive sound deadening technology that effectively reduces sound levels by over 35%, compared to typical range hoods.
PERIMETER ASPIRATION
Perimeter Aspiration: First developed by Elica,
this technology literally turned the market 45
degrees and opened the door to hoods that could
be mounted on the wall like picture frames. The
technology draws air through a narrowed channel
around a face plate, which increases suction,
without increasing blower speed or energy consumption.
CFM REDUCTION SYSTEM
At installation, the maximum blower CFM can be reduced to meet local code requirements.
LED LIGHT
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
Specifications
General
Series Name
Maggiore
Blower Included
Yes
Airflow
600 CFM
Style
Island
Color
Stainless Steel
Manufacturer Color
Stainless Steel with Black Glass
Installation
Ceiling Mount
Features
Dishwasher-Proof Filters
Yes
Technologies
• CFM Reduction System
• Hush System
• Hush System
Ducting Information
Round 6"/150 cm
Speeds
• Speed 1: 160 CFM
• Speed 2: 280 CFM
• Speed 3: 470 CFM
• Speed 4: 600 CFM
• Speed 2: 280 CFM
• Speed 3: 470 CFM
• Speed 4: 600 CFM
Additional Information
• Touch Control 3S + Booster
• 4 Premium LED Dimmable Lights
• Min: 1.73, Max: 6 Sones
• 3 Dishwasher- Safe, Staineless Steel Microhole Filter
• 4 Premium LED Dimmable Lights
• Min: 1.73, Max: 6 Sones
• 3 Dishwasher- Safe, Staineless Steel Microhole Filter
Electrical Information
Information
• 120 V
• 60 Hz
• 455 W
• 3.8 A
• 60 Hz
• 455 W
• 3.8 A
Accessories
Optional
• Recirculating Kit: KIT02665
• Long Chimney Extension: KIT0100317
• Long Chimney Extension: KIT0100317
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
29.81 inch(es) / 75.72 cm
Depth
27.13 inch(es) / 68.9 cm
Warranty
Warranty
Limited 2 Years Parts and Labor
