Description

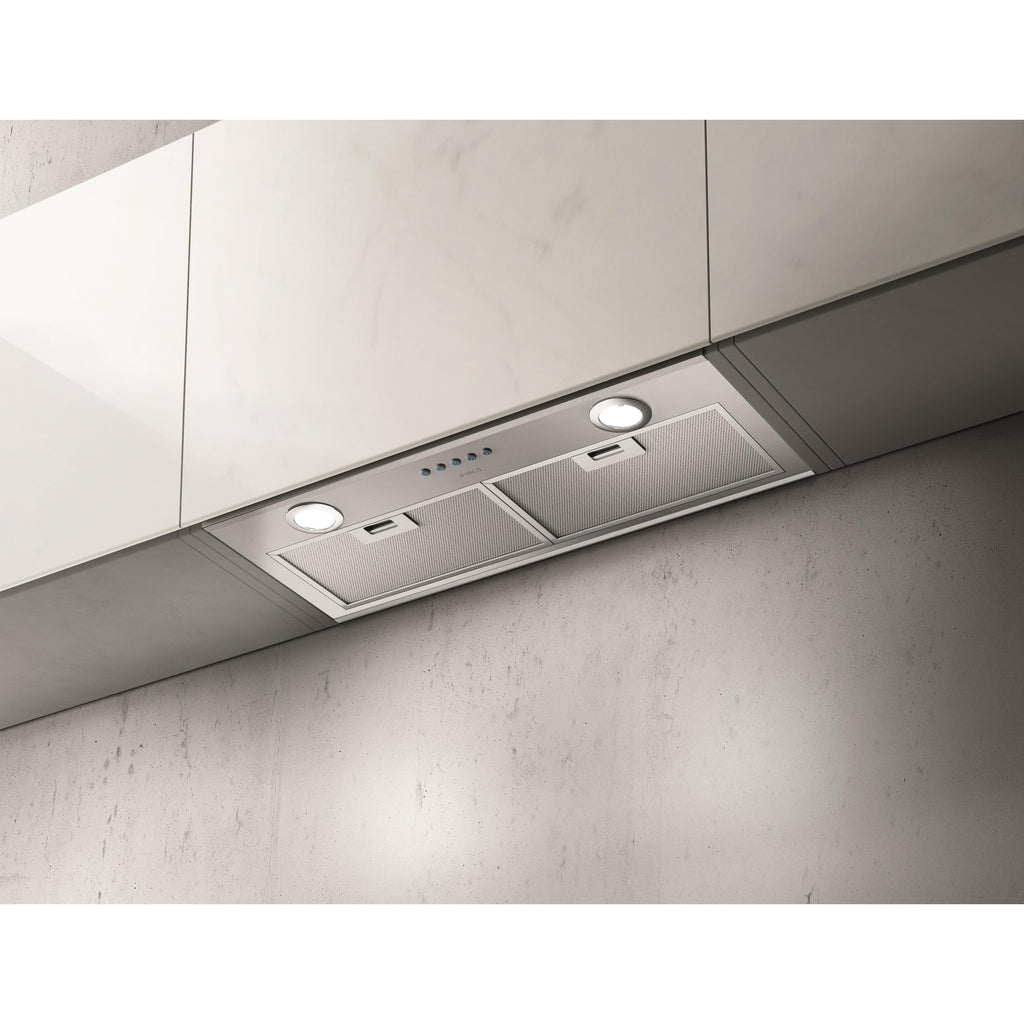

Asti is designed for discreet mounting inside cabinetry. At 28 1/4" wide and only 10 3/4" deep, Asti fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight. Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient backlit electronic push button controls operate the 3 speed blower and LED lighting, while dishwasher safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installations.
Features
DISHWASHER-SAFE
Dishwasher-safe,stainless steel baffle slot filter
Specifications
General
Series Name
ASTI
Blower Included
Yes
Airflow
400 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Standard ducted
• 6" Round with Back Draft Damper (top)
• 6" Round with Back Draft Damper (top)
Speeds
• 400 CFM, 3-Speed Internal
• Speed 1, 160 CFM, 1.5 Sones
• Speed 2, 280 CFM, 3.1 Sones
• Speed 3, 400 CFM, 5.9 Sones
• Speed 1, 160 CFM, 1.5 Sones
• Speed 2, 280 CFM, 3.1 Sones
• Speed 3, 400 CFM, 5.9 Sones
Additional Information

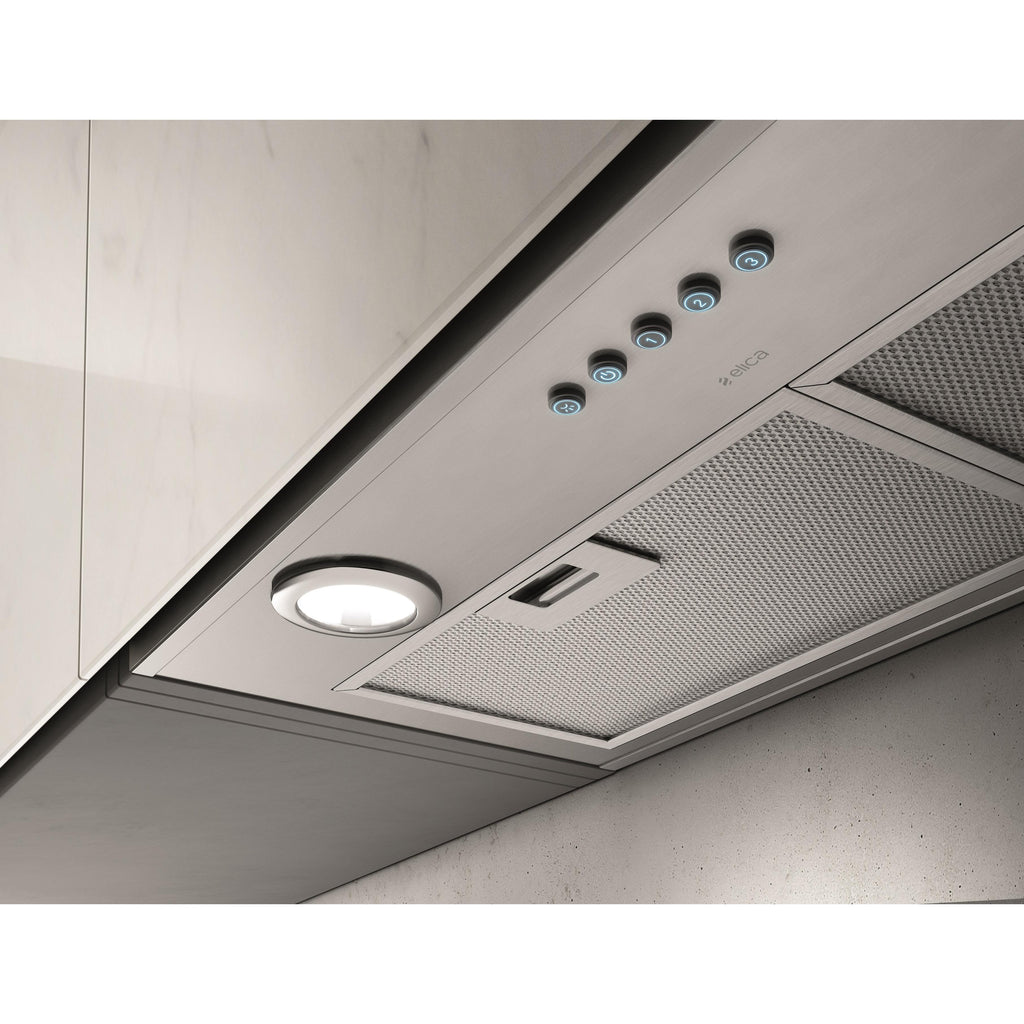

• Backlit Electronic Push Button Controls
• 2, Dishwasher-Safe, Anodized Aluminum Mesh Grease Filters
• 2, Dishwasher-Safe, Anodized Aluminum Mesh Grease Filters
Electrical Information
Information
• 120 Volts
• 60 Hertz
• 2.8 Amps
• 60 Hertz
• 2.8 Amps
Accessories
Included
2, 40 W LED, 1 Light Intensity
Dimensions
Class Width
28"
Width
28.25 inch(es) / 71.76 cm
Height
9.5 inch(es) / 24.13 cm
Depth
10.75 inch(es) / 27.31 cm
Warranty
Warranty
2 Year Parts & Labor
UPC
UPC#
190603001747
