Description

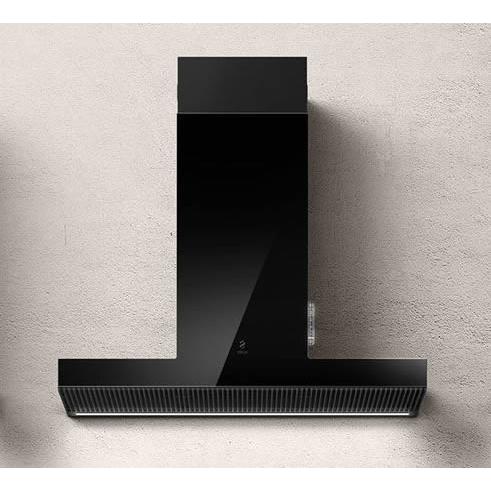

Haiku wall-mounted hood with adjustable depth. Its unique design enhances any space without sacrificing powerful extraction of 600 CFM. The innovative SHIFT 3238 SYSTEM, which allows millimetric adjustment of the depth of the product from 12.5” to 15”, guaranteeing perfect alignment of the hood with the front edge of the cabinets. Unlike all other T-Shape hoods, Haiku features no discontinuity between the body of the hood and the chimney. The monolithic front of the hood is completely linear, making Haiku especially easy to clean.
Features
UNIQUE MATERIALS
Products designed in unique materials and finishes with great aesthetic impact but also with practical and durable characteristics, perfect for use in the kitchen.
LONG LIFE FILTER
One of a kind odour filter, capable of regenerating itself and of lasting up to 3 years. To maintain these characteristics, the filter only requires simple maintenance: wash every 2 or 3 months with hot water and mild soap (also in dishwasher at 65 degrees) and dry in the oven for ten minutes at 100 degrees.
TOTAL INTEGRATION
These products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
DEEP SILENCE
This hood is equipped with Deep Silence noise abatement system that allows you to achieve high silence at all speeds thanks to the elimination of vortices and noise peaks.
Specifications
General
Series Name
• Haiku
• Iconic Series
• Iconic Series
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Black
Manufacturer Color
Black Glass
Installation
Wall Mount
Features
Technologies
• SHIFT 3238 SYSTEM
• Deep Silence noise abatement system
• Extractor system
• Deep Silence noise abatement system
• Extractor system
Ducting Information
Installation type: Duct out or recirculating (kit sold separately)
Speeds
• Speed 1: 210 CFM
• Speed 2: 340 CFM
• Speed 3: 490 CFM
• Speed 4-Boost: 550 CFM
• Speed 2: 340 CFM
• Speed 3: 490 CFM
• Speed 4-Boost: 550 CFM
Additional Information
• Monolithic front
• Millimetric adjustment of the depth
• No discontinuity between the body of the hood and the chimney
• Easy to clean
• Cast iron effect aluminum grilles

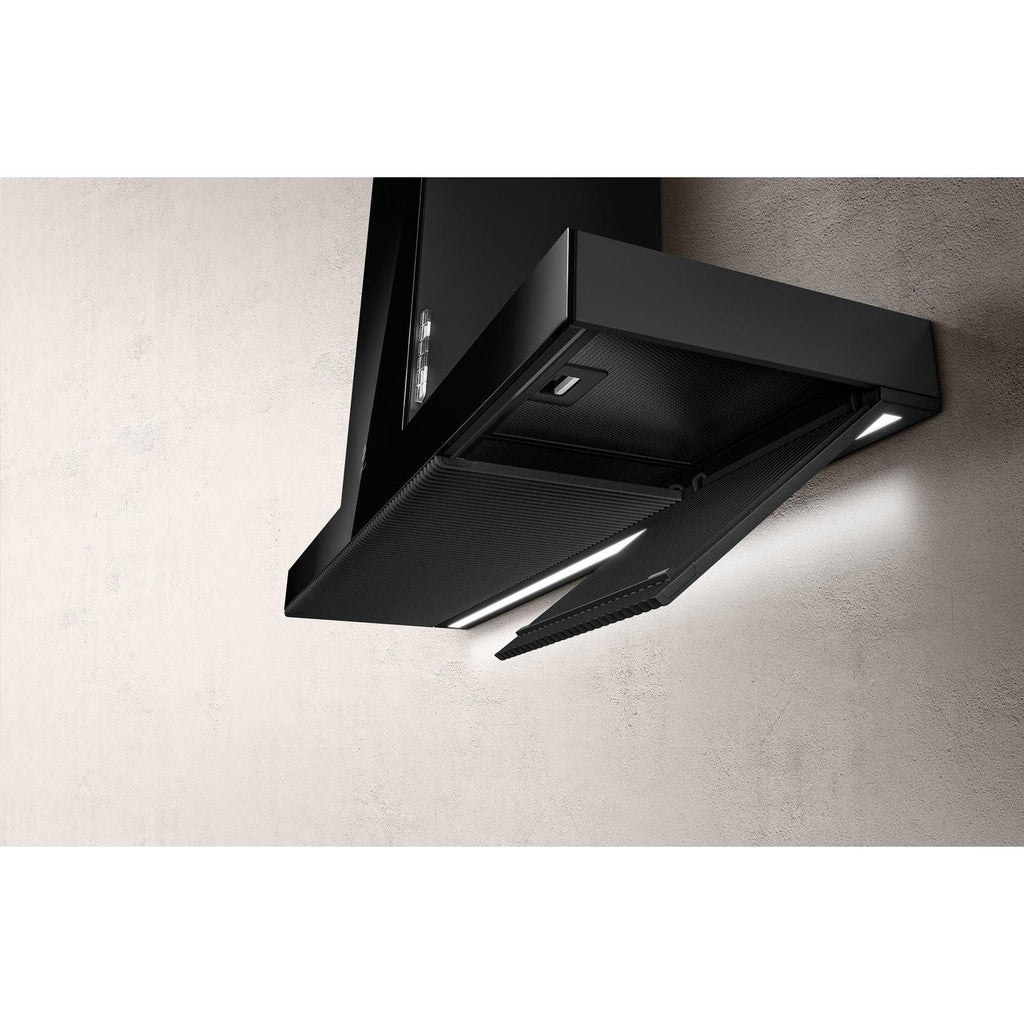

• Easy to remove grilles with a blocking system
• Noise at working speed: 1.8 Sones
• Controls: 3S + 2B Touch control
• Illumination: Strip LED 1X7 W 3500 K
• Filter type: 6 layer mesh filter + sophisticated black iron grates
• Millimetric adjustment of the depth
• No discontinuity between the body of the hood and the chimney
• Easy to clean
• Cast iron effect aluminum grilles
• Easy to remove grilles with a blocking system
• Noise at working speed: 1.8 Sones
• Controls: 3S + 2B Touch control
• Illumination: Strip LED 1X7 W 3500 K
• Filter type: 6 layer mesh filter + sophisticated black iron grates
Accessories
Optional
Recirculating Kit: CFC0141725AUL
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
27 inch(es) / 68.58 cm
Depth
12.5 inch(es) / 31.75 cm
Warranty
Warranty
2-Year parts and labor
